Current Transformer

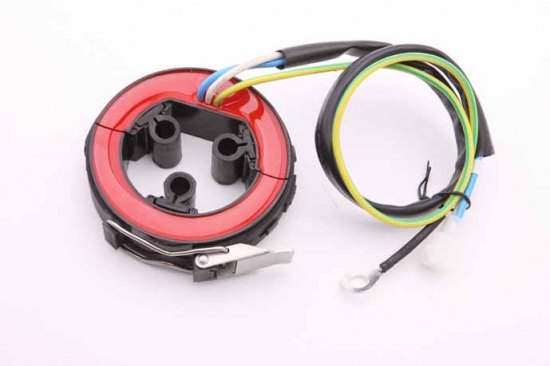

LMZK1 split core current transformer is suitable for measurement of primary current, or for protection of electrical equipments such as microcomputer in 10KV and 35KV AC power distribution networks. It is widely used in fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The transformer can be directly installed at the inlet and outlet of the GIS or AIS cables. The semicircular ring core and secondary windings are vacuum poured by insulated resin. This CT is also used for signal acquisition for RTU or FTU.

item no.:
LMZK1

inquiry now

details

LMZK1 split core (easy to open-close type) Current Transformer is convenient for installation (no need to reconstruct the substation power cable networks).
P1, P2 are primary polarity terminals. S1, S2 are secondary polarity terminals.

P2, S2 are homonymous (minus polarity).

TECHNICAL PARAMETERS of LMZK1 Split Core Current Transformer

Model	LMZK1-10
Voltage level	10kV
Rated primary current	300-600A
Rated burden	≤5VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated continuous over-current	120%I1
Insulation strength	AC 3kV, 1min
Applicable primary cable diameter	Φ20mm to φ40mm
Dimensions (d×D×H) (mm)	φ50xφ103x32
Operating temperature	-25°C to +40°C

TECHNICAL DATA of LMZK1 split core current transformer

Model	LMZK1-10
Voltage level	10kV
Type	Current transformer for measurement
Accuracy class	0.5	1
Current rating PRI:SEC Amperes	Rated burden (VA)
300:1		2.5
400:1	2.5	3.75
500:1	2.5	5
600:1	2.5	5
300:5		2.5
400:5	2.5	3.75
500:5	2.5	5
600:5	2.5	5
