Product function
*Split core type structure, which can be installed without changing cables
*High-quality epoxy resin vacuum casting, excellent mechanical and environmental *resistance
*High-quality stainless steel clamp hoop fastening structure, easy and reliable installation
*Output terminal type, more concise wiring
*Single winding protection current transformer
TECHNICAL PARAMETERS
Dimensions (D×d×H)
166mm×110mm×100mm
Rated frequency
50Hz
Rated secondary current
5A
Rated burden
≤2.5VA
Applicable cable outer
diameter
≤φ110mm
Rated primary current
range
100A
Dielectric strength
AC3000V,1min
Rated continuous
overcurrent
120% of rated current
Polarity and homonym
P2 represents the primary polarity
terminal,
S1, S2 represent the secondary
polarity end,
P2 and S2 have the same polarity
(-polarity) at the same instant
Working environment
Temperature
-25℃~40℃
Humidity
≤90%
Altitude
≤1000m
TECHNICAL DATA
Model
LXZK2
Accuracy class & Rated
burden(VA)
Accuracy class & Rated
burden(VA)
Type
Current transformer
for protection
Current transformer for
measurement
Current rating
5P10
10P10
0.5
1.0
3
20/1
1
√
50/1
1
1.5
√
√
75/1
1.5
2.5
√
√
100/1
2.5
3.75
√
√
150/1
2.5
5
√
√
√
50/5
1
√
75/5
1
1.5
√
√
100/5
1.5
2.5
√
√
150/5
2.5
3.75
√
√
PRI:SEC
Amperes

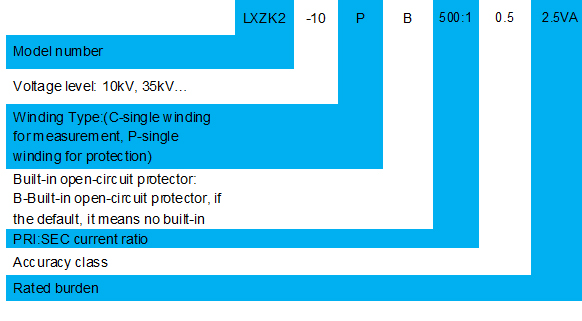

ORDERING INFORMATION
