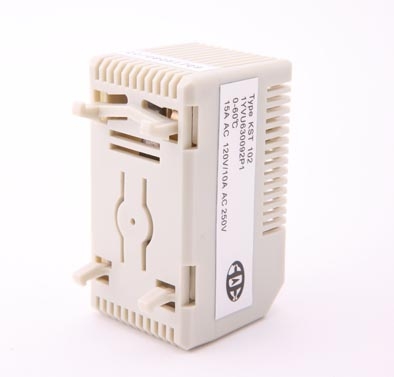

Features of Switchgear Temperature Controller 10℃
* High accuracy and wide temperature-control range
* Small size
* High switching performance
* Clip rail type, easy installation
* Standard:GB14536-1996 JB/T3751-1997
Make and break Temperature difference |
≤7K |
Liftime |
> 100 000 cycles |
|
Temp Accuracy |
±4℃ |
Protection Grade |
IP30 |
|
Sensor |
Bimetallic thermal materials |
Housing Materials |
UL94 V-0 light blue flame retardant plastic |
|
ContactType |
Units connect dynamically |
Installation Method |
35mm DIN rail(EN50022) |
|
capacity of contact |
10A 250VAC |
Installation dimension |
L*W 35mm*25mm |
|
15A 125VAC |
Torque for connection terminals |
0.5 Nm |
||
Contact resistance |
< 50mΩ |
Wire diameter of connection terminals |
Rigid conductive wire 0.5~2.5mm² Flexible conductive wire 0.5~1.5mm² |
|
Insulated resistance |
>50MΩ |
Models and Specifications Switchgear temperature controller
Temperature Range |
Model |
Type of output contact |
10℃(fixed at 10℃, not adjustable) |
KST101 |
NC,When the temperature reaches the set value, the contacts will be closed |

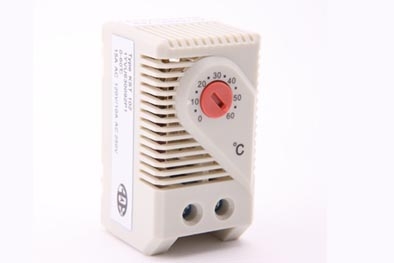

0℃~60℃ |
KST102 |
NC,When the temperature reaches the set value, the contacts will be closed |
0℃~60℃ |
KST201 |
NO,When the temperature reaches the set value, the contacts will be opened. |
Application areas of Switchgear temperature controller 10℃
* High and low voltage switchgears
* Terminal box
* ZBW
* For temperature control and alarming for heaters etc

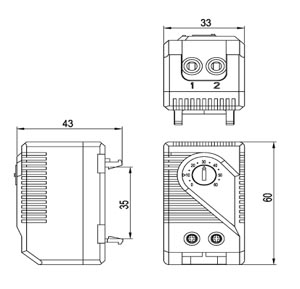

Wiring Diagram and Mounting Dimensions
