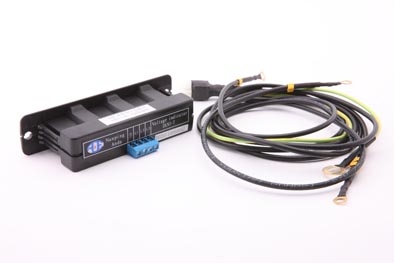

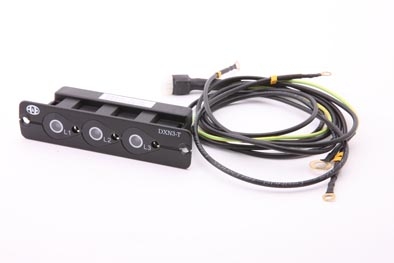

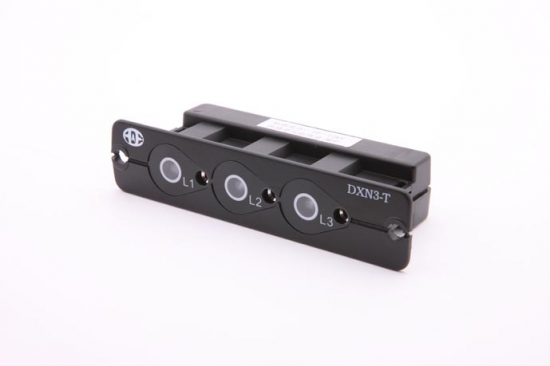

High Voltage Indicator DXN3-T

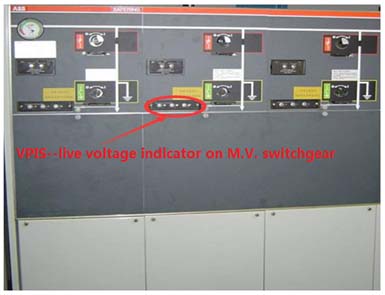

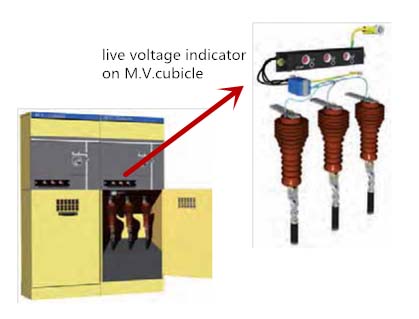

DXN3-T High Voltage Indicator indicates the voltage presence on M.V. cubicles (switchgear) by being installed on the capacitive dividers.


Features of High Voltage Indicator DXN3-T


* 3 phase live voltage indicating system

* Can work with phase comparator for phase checking

* Wide-range 3kV- 40.5kV

* Working frequency 50/60Hz

* Threshold values for voltage presence indication: U>0.40 x Unmin

* Threshold values for voltage absence indication: U<0.15 x Unmax

* Divider capacitance 8pF or be specified by buyer

* Temperature range -25°C to +40°C

* Insulation strength: AC 2kV, 1min

* Product dimensions (W×H×D) 130x30x55mm




Technical Parameter of High Voltage Indicator DXN3-T


Executive Standard

DL/T538-2006

Working Frequency

50Hz/60Hz

Nominal Voltage

3-3.6kV

6-7.2kV

10-12kV

20-24kV

35-40.5kV

Divider Capacitance

8pF,or customized by buyers

Threshold Values for Voltage Presence Indication

U>0.40 x Unmin

Threshold Values for Voltage Absence Indication

U<0.10 x Unmax

Working Temperature

-25 - +40

Working Humidity

95%

Insulation Strength

2kV,1min

Protection Level

IP20

Overall Dimension (WxHxD)

130x30x55 mm

Mounting Dimension (WxHxD)

105x25x52 mm
