Motor Operating Device

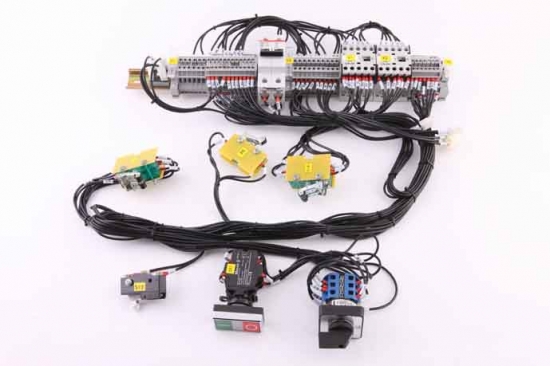

AD DC 2 – A/ AC220 series of Motor Operating Device are applicable for modules of ABB safe cabinets. Operated by motor gear, it can store energy to make-and-break the circuit breakers of MV switchgears. Functions include Remote/local switching and local make-and-break of switches, local and remote indication of the status of load switches, earth switches and fuses.

item no.:
ADDC2–A

inquiry now

details

Technical Parameter of Motor Operating Device AD DC 2 – A/ AC220

Rated

Voltage

（VDC）

Rated

Power

（W）

Rated

Current

（A）

Rated

Speed

（r/min）

Rated

Torque

（N.m）

Working

Temperature（℃）

Storage

time of motor（s）

220

0.6

180

3.45

-40～+40

8±1

110

1.2

2.8

5.6

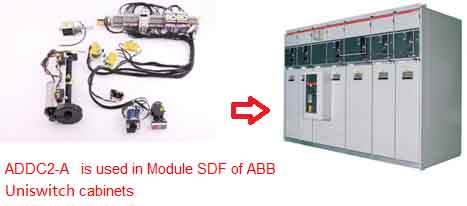

Application example of Motor Operating Device AD DC 2 – A/ AC220
