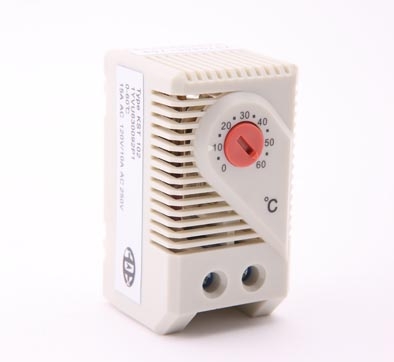

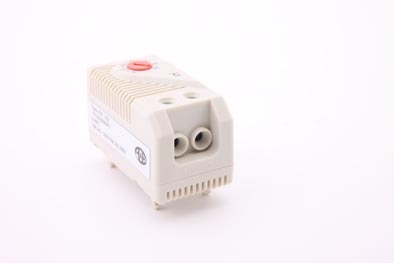

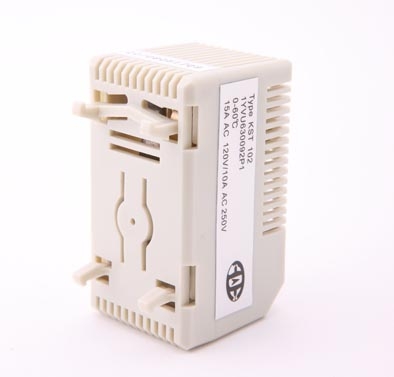

Switchgear Thermostat

KST series of small-sized thermostat and bimetallic thermostat dedicated for switchgears 10℃. It can automatically start fans or heaters and adjust temperature and humidity of the surrounding according to on-site situation. The contacts will output action indication signals, when ambient temperature is higher than pre- set temperature, the contact of controller will flip so to protect the equipments from being damaged.
  • item no.:

    KST101
inquiry now
details

Features of Switchgear Thermostat 10℃


* High accuracy and wide temperature-control range

* Small size

* High switching performance

* Clip rail type, easy installation

* Standard:GB14536-1996 JB/T3751-1997


Make and break Temperature difference

≤7K

Liftime

> 100 000 cycles

Temp Accuracy

±4

Protection Grade

IP30

Sensor

Bimetallic thermal materials

Housing Materials

UL94 V-0 light blue flame retardant plastic

ContactType

Units connect dynamically

Installation Method

35mm DIN railEN50022

capacity of contact

10A 250VAC

Installation dimension

L*W 35mm*25mm

15A 125VAC



Torque for connection terminals

0.5 Nm

Contact resistance

< 50mΩ

Wire diameter of connection terminals

Rigid conductive wire 0.5~2.5mm²

Flexible conductive wire 0.5~1.5mm²

Insulated resistance

>50MΩ


Models and Specifications Switchgear Thermostat


Temperature Range

Model

Type of output contact

10fixed at 10

not adjustable

KST101

NCWhen the temperature reaches the set value, the contacts will be closed

060

KST102

NCWhen the temperature reaches the set value, the contacts will be closed

060

KST201

NOWhen the temperature reaches the set value, the contacts will be opened.


Application areas of Switchgear Thermostat 10℃


* High and low voltage switchgears

* Terminal box

* ZBW

* For temperature control and alarming for heaters etc


Wiring Diagram and Mounting Dimensions
