Phase Comparator

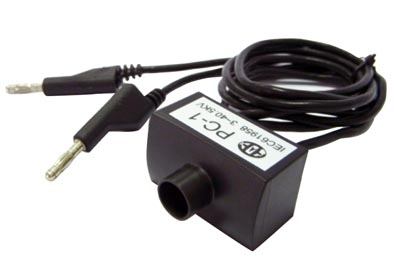

Phase comparator PC-1 is an optional accessory for DXN series of high-voltage live line indicators.
  • item no.:

    PC-1
inquiry now
details

Phase Comparator is used in conjunction with a high-voltage live line indicator. Its plug cords are respectively inserted into the phase checking holes of the voltage indicating device to check the correctness of the phase. The light does not illuminate to indicate normal, and the light indicates that the phase is incorrect.


With cable length 2 meters, 3 meters, 6 meters commonly used, 8 meters for options.
