Voltage Indicating System

DXN1-T Live line voltage indicating system indicates the voltage status of the main circuit of the high voltage electrical equipments, preventing electrical misoperation and accidental entry into the area with high voltage presence.

item no.:
DXN1-T

inquiry now

details

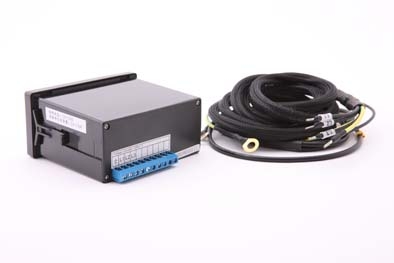

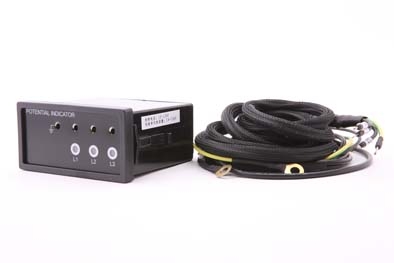

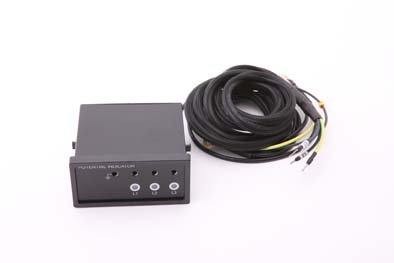

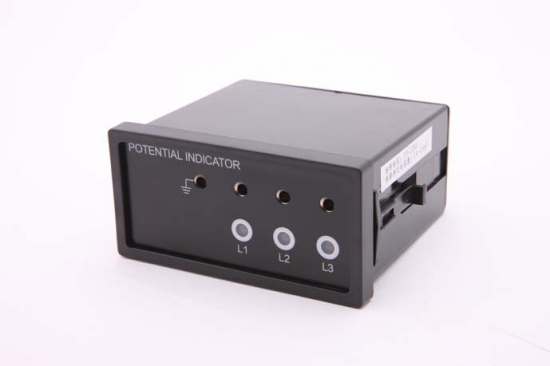

Live Line Voltage Indicating System DXN1-T

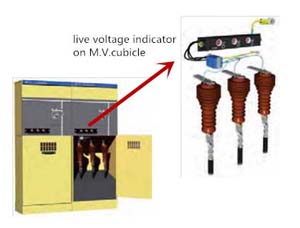

DXN1-T Live line voltage indicating system indicates the voltage presence on M.V. cubicles （switchgear） by being installed on the capacitive dividers.

Features of live line voltage indicating system DXN1-T

*3-phase live-voltage indicating system

*Can work with phase comparator for phase checking

*Wide-range 3kV- 40.5kV

*Working frequency 50/60Hz

*Threshold values for voltage presence indication: U>0.40 x Unmin

*Threshold values for voltage absence indication: U<0.15 x Unmax

*Threshold values for over-voltage protection: <0.30 x Unmin

*Divider capacitance 14pF or be specified by buyer

*Temperature range -25°C to +40°C

*Insulation strength: AC 2kV, 1min

*Product dimensions (L×W×D): 96x49x95mm

Technical Parameter of live line voltage indicating system DXN1-T

Executive Standard	DL/T538-2006
Working Frequency	50Hz/60Hz
Nominal Voltage	3-3.6kV
	6-7.2kV
	10-12kV
	20-24kV
	35-40.5kV
Divider Capacitance	14pF,or customized by buyers
Threshold Values for Voltage Presence Indication	U>0.40 x Unmin
Threshold Values for Voltage Absence indication	U<0.15 x Unmax
Threshold Values for Over-voltage Protection	U<0.30 x Unmin
Working Temperature	-25℃-+40℃
Working Humidity	＜95%
Insulation Strength	2Kv,1min
Protection Level	IP20
Overall Dimension(WxHxD)	96x49x95 mm
Mounting Dimension(WxHxD)	92x45x87 mm
Cable Length	2M,or customized by buyers
