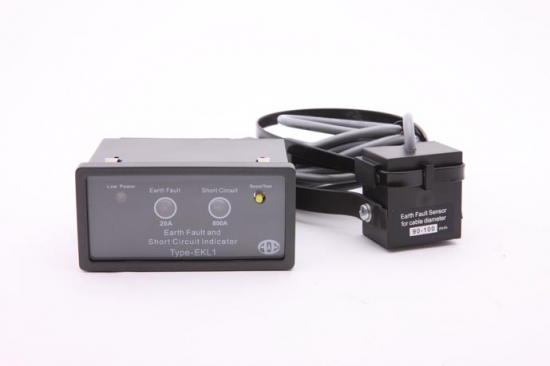

Earth Fault and Short Circuit Indicator EKL1B
Short circuit fault alarm indication

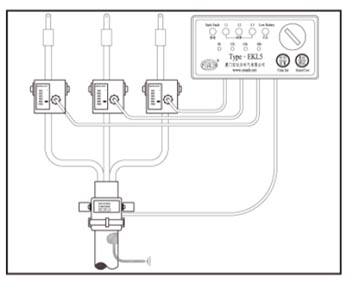

Short-circuit fault sensors installed on 3 single phase cables, monitoring the current changes of the power supply lines, when the current change value reach or exceed Threshold currents for short circuit alarm (this value can be set as per user requirement),the short circuit fault sensors output alarm signal, through optical fiber the signal will be sent to the indicator host, the corresponding fault indicator light will flash to alarm the short circuit fault.
Earth fault alarm indication
Earth fault sensor installed on the bifurcation unshielded part of three-phase cable, detecting the zero sequence current value of the three-phase cable, when its value reach or exceed Threshold currents for grounding fault alarm (this value can be set as per user requirement), the earth fault sensor outputs alarm signal through optical fiber, which will be sent to the indicator host, and the earth fault indicator light will flash to alarm the earth fault.
Features of Earth Fault and Short Circuit Indicator EKL1B
* Earth fault detection a grounding current sensor
* Earth fault indication by one super bright LED display
* Remote indication via 2 relay contacts
* Auxiliary power supply: 24V-230V DC/AC or built-in Li-ion battery with low-power-status indication
* Reset/Test Button
* Remote reset
* Auto-reset: 7s/8h/12h/24h reset time for options
Technical Parameter of Earth Fault and Short Circuit Indicator EKL1B
Voltage Level |
3kV-40.5kV |
||
Ambient |
Temperature |
-25°C to +70°C |
|
Humidity |
≤95% |
||
Threshold Currents for Grounding Fault Alarm |
10A-100A |
||
Alarm Current Accuracy |
±10% |
||
Alarm Response Time |
Grounding Fault |
40ms |
|
Working Current |
Stand By |
≤10uA |
|
Indication Alarm |
≤0.5mA |
||
Auto Reset Time |
7s/8H/12H/24H |
||
Auxiliary Power Supply |
Built-in Battery |
Li-ion 3.6V/ 2.25Ah |
|
External |
24V-230V DC/AC |
||
Capacity of Relay Contacts |
2A 30VDC/1A 125VAC |
||
Applicable Conductor Diameter |
Grounding Sensor |
Type A |
Φ60mm~Φ100mm |
Type C |
Φ80mm~Φ130mm |
||
Protection Class |
Indicator |
IP40 |
|
Sensor |
IP65 |
||
Fiber Cable Length for Grounding Sensor |
2.5m can be customized |
||
Panel Window Size (WxH) |
92x45mm |
||
Indicator Size (WxHxD) |
96X48x69mm |
||
Sensor Size (WxHxD) |
40x44x27mm |
