Fault Indicator

EKL3 Short Circuit and Earth Fault Indicator indicates high voltage power line short circuit fault by detecting the 3 single-phase line-currents and short circuit currents, and the grounding fault by detecting the zero sequence currents. With visual or audible indicators, it helps line patrol staff to fast find out the location where there is a short circuit or grounding fault on the 3kV-40.5kV power distribution networks, switchgears or cable branching units etc

item no.:
EKL3

inquiry now

details

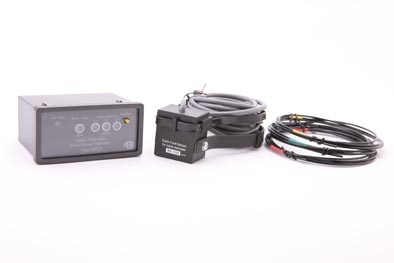

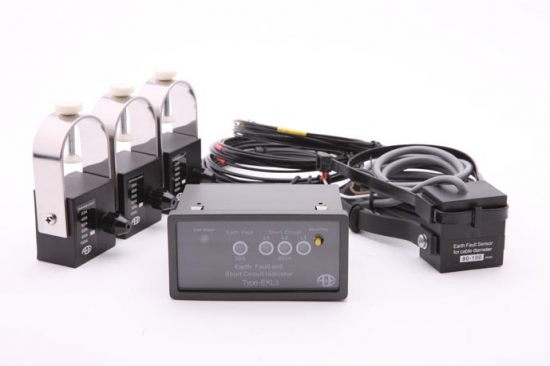

Short Circuit and Earth Fault Indicator EKL3

Short circuit fault alarm indication

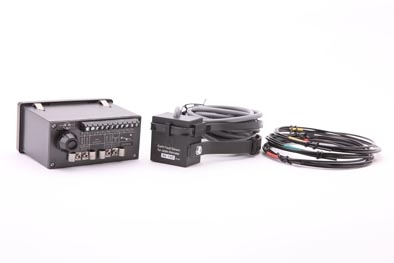

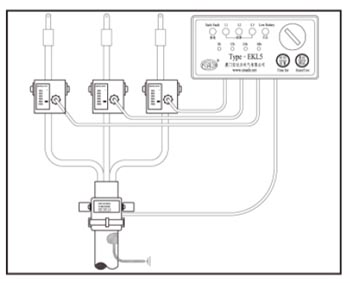

Short-circuit fault sensors installed on 3 single phase cables, monitoring the current changes of the power supply lines, when the current change value reach or exceed Threshold currents for short circuit alarm (this value can be set as per user requirement),the short circuit fault sensors output alarm signal, through optical fiber the signal will be sent to the indicator host, the corresponding fault indicator light will flash to alarm the short circuit fault.

Earth fault alarm indication

Earth fault sensor installed on the bifurcation unshielded part of three-phase cable, detecting the zero sequence current value of the three-phase cable, when its value reach or exceed Threshold currents for grounding fault alarm (this value can be set as per user requirement), the earth fault sensor outputs alarm signal through optical fiber, which will be sent to the indicator host, and the earth fault indicator light will flash to alarm the earth fault.

Features of Short Circuit and Earth Fault Indicator EKL3

* Short circuit and earth fault detection with 3 single-phase current sensors, and one grounding current sensor

* Short-circuit indication (3 single phase L1,L2,L3) by three super bright LEDs respectively

* Earth fault indication by one super bright LED display

* Remote indication via 2 relay contacts

* Auxiliary power supply: 24V-230V DC/AC or built-in Li-ion battery with low-power-status indication

* Reset/Test Button

* Remote reset

* Auto-reset: 7s/8h/12h/24h reset time for options

Technical Parameter of Short Circuit and Earth Fault Indicator EKL3

Model number			EKL3
Voltage level			3kV-40.5kV
Ambient	Temperature		-25°C to +70°C
	Humidity		≤95%
Threshold currents for short circuit alarm			150A-2000A
Threshold currents for grounding fault alarm			10A-100A
Alarm current accuracy			±10%
Alarm response time	Short circuit fault		40ms
	Grounding fault		40ms
Working current	Stand by		≤10uA
	Indication alarm		≤0.5mA
Auto reset time			7s/8h/12h/24h
Auxiliary power supply	Built-in battery		Li-ion 3.6v2.25Ah
	External		24V-230V DC/AC
Capacity of relay contact			2A 30VDC/1A 125VAC
Applicable conductor diameter	Short circuit sensor	type A	Φ20mm~Φ40mm
		type B	Φ30mm~Φ50mm
		type C	Φ50mm~Φ70mm
	Grounding sensor	type A	Φ60mm~Φ100mm
		type C	Φ80mm~Φ130mm
Protection class	Indicator		IP40
	Sensor		IP65
Fiber cable length for short circuit sensor			1.5m can be customized
Fiber cable length for grounding sensor			2.5m can be customized
Panel window size (WxH)			92x45mm
Indicator size (WxHxD)			96X48x69mm
Sensor size (WxHxD)			40x44x27mm

hot tags :

previous :
Short Circuit Earth Fault Indicating Device
next :
Short Circuit Earth Fault Indicator

categories

Hot Products

Short Circuit and Earth Fault Detector

EKL4B Short Circuit and Earth Fault Detector indicates high voltage power line short circuit fault by detecting the 3 single-phase line-currents and short circuit currents, and the grounding fault by detecting the zero sequence currents. With visual or audible indicators, it helps line patrol staff to fast find out the location where there is a short circuit or grounding fault on the 3kV-40.5kV power distribution networks, switchgears or cable branching units etc.
High Voltage Indicator

DXN3-T High Voltage Indicator indicates the voltage status of the main circuit of the high voltage electrical equipments, preventing electrical misoperation and accidental entry into the area with high voltage presence.
Instrument Transformer

LMZK3 split core instrument transformer is suitable for measurement of primary current, or for protection of electrical equipments such as microcomputer in 10KV and 35KV AC power distribution networks. It is widely used in fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The transformer can be directly installed at the inlet and outlet of the GIS or AIS cables. The semicircular ring core and secondary windings are vacuum poured by insulated resin. This CT is also used for signal acquisition for RTU or FTU.
Motor Drive Operating Mechanism

AD DC 3 – S / AC220 series of Motor Drive Operating Mechanism are applicable for modules of ABB safe cabinets. Operated by motor gear, it can store energy to make-and-break the circuit breakers of MV switchgears. Functions include Remote/local switching and local make-and-break of switches, local and remote indication of the status of load switches, earth switches and fuses.
Switchgear Temperature Controller

KST series of small-sized temperature controller and bimetallic thermostat dedicated for switchgears 10℃. It can automatically start fans or heaters and adjust temperature and humidity of the surrounding according to on-site situation. The contacts will output action indication signals, when ambient temperature is higher than pre- set temperature, the contact of controller will flip so to protect the equipments from being damaged.

Send a message

Contact Us

Xiamen Andaxing Electric Group Co.,Ltd TEL：86-592-3102888 or 3170079 FAX：86-592-3170008 Email : ade@cnade.net ADD：58th, Siming Park, Tong’an Industrial Zone, Xiamen, China. Zip Code : 361100 Websites : www.andaxingelectric.com www.andaxing.net www.cnade.net

related products

Short Circuit and Earth Fault Detector

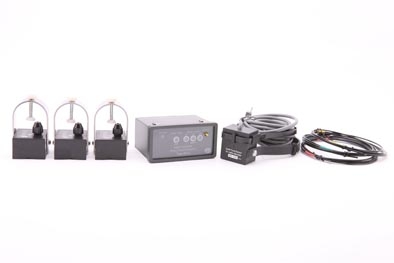

EKL4B Short Circuit and Earth Fault Detector indicates high voltage power line short circuit fault by detecting the 3 single-phase line-currents and short circuit currents, and the grounding fault by detecting the zero sequence currents. With visual or audible indicators, it helps line patrol staff to fast find out the location where there is a short circuit or grounding fault on the 3kV-40.5kV power distribution networks, switchgears or cable branching units etc.
