Capacitive Voltage Indicator

DXN8-Q Capacitive Voltage Indicator indicates the voltage status of the main circuit of the high voltage electrical equipments, preventing electrical misoperation and accidental entry into the area with high voltage presence

item no.:
DXN8-Q

inquiry now

details

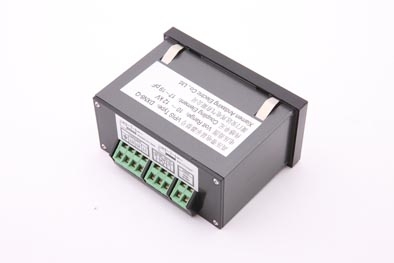

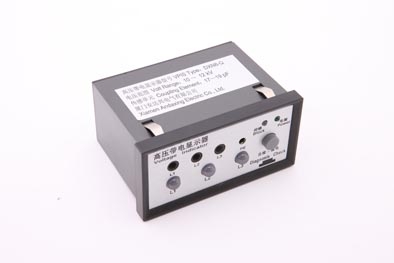

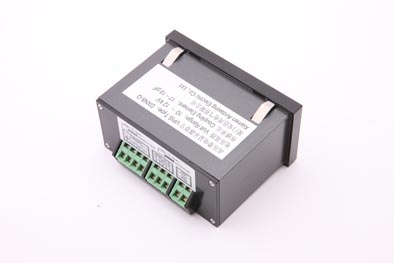

3 Phase Capacitive Voltage Indicator DXN8-Q

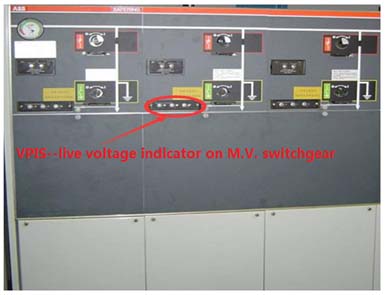

DXN8-Q Capacitive Voltage Indicator indicates the voltage presence on M.V. cubicles （switchgear） by being installed on the capacitive dividers.

Features of 3 Phase Capacitive Voltage Indicator DXN8-Q

* 3 phase live voltage indicating system

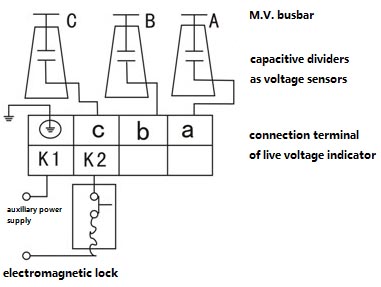

* Interlocking indication by relay signal output for auto lockout with electromagnetic lock

* Can work with phase comparator for phase checking

* With self-checking button and LED power supply indicator

* Wide-range 3kV- 40.5kV

* Working frequency 50/60Hz

* Threshold values for voltage presence indication: U>0.40 x Un

* Threshold values for voltage absence indication: U<0.15 x Un

*Threshold values for over-voltage protection: <0.30 x Un

* Divider capacitance 14pF or be specified by buyer

* Temperature range -25°C to +40°C

* Insulation strength: AC 2kV, 1min

* Product dimensions (L×W×D) 96x49x77mm

Technical Parameter of 3 Phase Capacitive Voltage Indicator DXN8-Q

Executive Standard		DL/T538-2006
Working Frequency		50Hz/60Hz
Executive Standard		3-3.6kV
		6-7.2kV
		10-12kV
		20-24kV
		35-40.5kV
Divider Capacitance		14pF,or customized by buyers
Threshold Values for Voltage Presence Indication		U>0.40 x Unmin
Threshold Values for Voltage Absence indication		U<0.15 x Unmin
Threshold Values for Over-voltage Protection		U<0.30 x Unmin
Contact Capacity of Relay	Maximum Switching Voltage	250V
	Persistent Current	16A
Auxiliary Power Supply		AC/DC 24-230V
Working Temperature		-25℃-+40℃
Working Humidity		＜95%
Insulation Strength		2kV,1min
Overall Dimension (WxHxD)		96x49x77 mm
Mounting Dimension (WxHxD)		92x45x69 mm
Shielded Cable Length		2M,or customized by buyers
