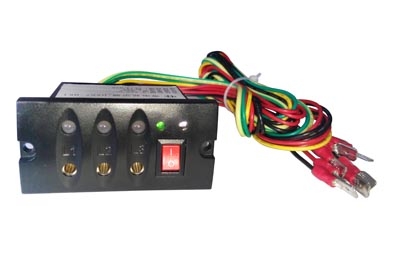

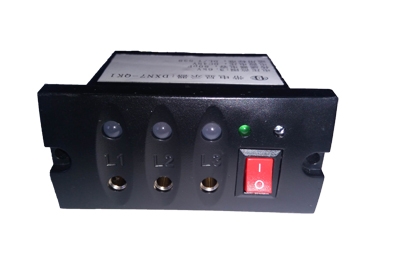

High Voltage Potential Indicator DXN7-T

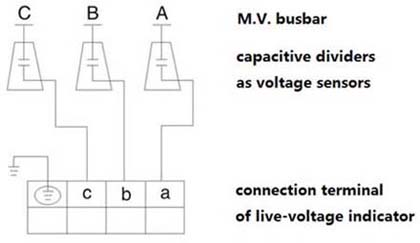

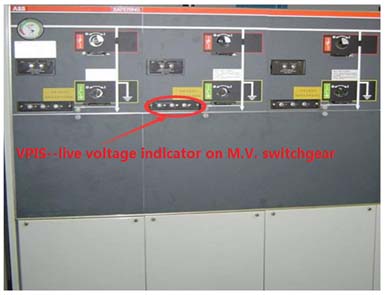

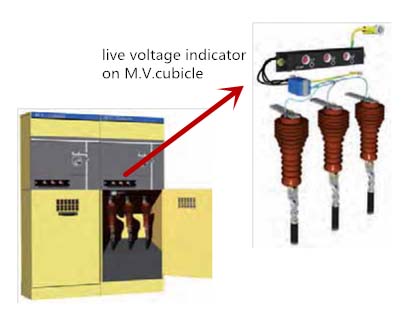

DXN7-T High Voltage Potential Indicator indicates the voltage presence on M.V. cubicles （switchgear） by being installed on the capacitive dividers.

Features of High Voltage Potential Indicator DXN7-T

* 3 phase live voltage indicating system

* Can work with phase comparator for phase checking

* Wide-range 3kV- 40.5kV

* Working frequency 50/60Hz

* Threshold values for voltage presence indication: U>0.40 x Unmin

* Threshold values for voltage absence indication: U<0.15 x Unmax

* Threshold values for over-voltage protection: <0.30 x Unmin

* Divider capacitance 27pF or be specified by buyer

* Temperature range -25°C to +40°C

* Insulation strength: AC 2kV, 1min

* Product dimensions (L×W×D): 70x35x38mm

Technical Parameter of High Voltage Potential Indicator DXN7-T

Executive Standard	IEC61958-2000
Working Frequency	50Hz/60Hz
Nominal Voltage	3-6kV
	6-12kV
	10-24kV
	24-40.5kV
Divider Capacitance	18pF, or customized by buyers
Threshold Values for Voltage Presence Indication	U>0.45 x Unmin
Threshold Values for Voltage Absence Indication	U<0.10 x Unmax
Threshold Values for Over-voltage Protection	U<0.30 x Unmin
Working Temperature	-25℃ - +40℃
Working Humidity	＜95%
Insulation Strength	2kV,1min
Protection Level	IP20
Overall Dimension (WxHxD)	130x28x52 mm
Mounting Dimension (WxHxD)	105x22x48.5 mm (The distance between two screw holes is 120 mm)
Shielded Cable Length	Type A: L1=960mm; L2=1070mm; L3=1180mm, or customized by buyers
