Live Line Indicators

DXN2-Q Live Line Indicators indicate the voltage status of the main circuit of the high voltage electrical equipments, preventing electrical misoperation and accidental entry into the area with high voltage presence.

item no.:
DXN2-Q

inquiry now

details

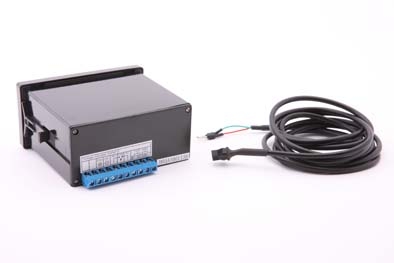

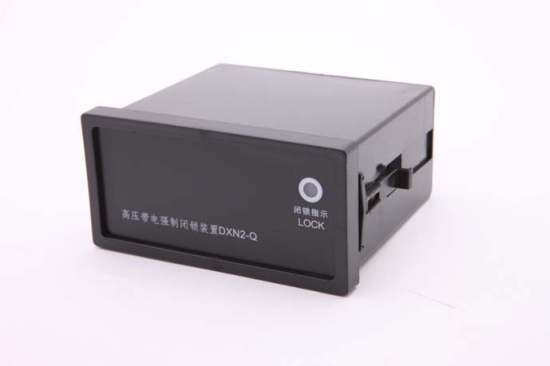

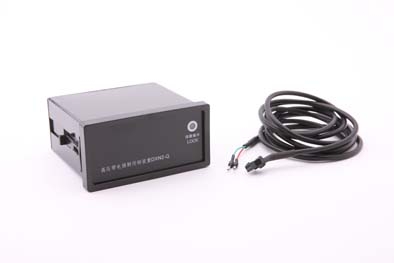

MV Live Line Indicators DXN2-Q

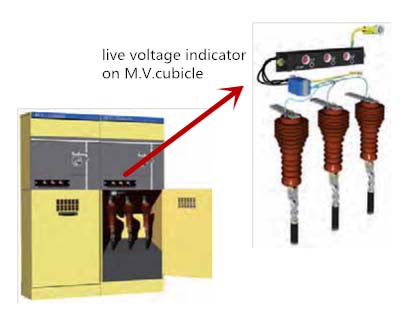

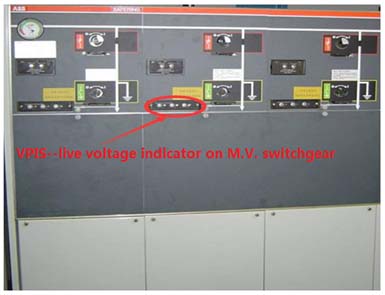

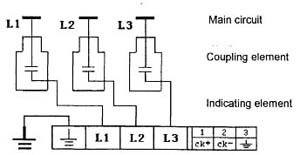

DXN2-Q MV Live Line Indicators indicate the voltage presence on M.V. cubicles （switchgear） by being installed on the capacitive dividers.

Features of MV Live Line Indicators DXN2-Q

*Must work with the live voltage indicator ( DXN2-T) to realize the functions of interlocking indication and interlocking signals output to the electromagnetic lock for auto lockout;

*Wide-range 3kV- 40.5kV

*Working frequency 50/60Hz

*Temperature range -25°C to +40°C

*Insulation strength: AC 2kV, 1min

*Product dimensions (L×W×D) 96x49x95mm

Technical Parameter of MV Live Line Indicators DXN2-Q

Executive Standard	DL/T538-2006
Working Frequency	50Hz/60Hz
Interlocking Relay Output Contact Capacity	10A/250V AC 10A/30V DC
Auxiliary Power Supply	DC24V、DC48V AC/DC 110/220V
Working Temperature	-25℃-+40℃
Working Humidity	＜95%
Insulation Strength	2kV,1min
Overall Dimension (WxHxD)	96x49x95 mm
Mounting Dimension (WxHxD)	92x45x87 mm
Shielded Cable Length	1.9 m
