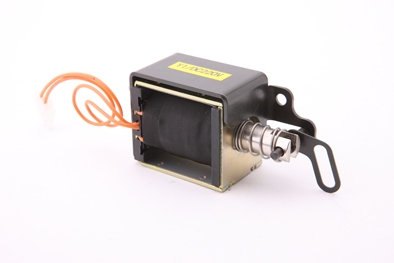

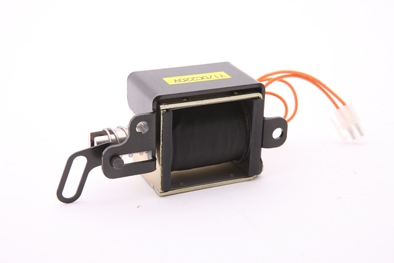

Electromagnet in Circuit Breakers

MQZ2 electromagnet in circuit breakers is mainly used in the control circuit of DC 220V, as the electromagnet coil for switching of motorized operating device of vacuum circuit breaker and switchgear incoming/outgoing cables.


  • item no.:

    MQZ2
inquiry now
details

Characteristics MQZ2 Electromagnet In Circuit Breakers



* Easy to fix and connect to the load

* The risen temperature is stable so as to prolong lifetime and guarantee excellent performance

* Anti-friction ensures high efficiency and long lifetime


Coil Voltage

2201104824VDC

Rated Attraction

40N

Rated Travel

11mm

Operation Frequency (Power duration <1s)

120(times/H)

Limit of temperature rise

65(K)

Lifetime

>10000 times

Dielectric Property

AC2000V,1min

Environment

Altitude

≤1000m

Temperature

-25℃ +40℃

Humidity

≤95%

Pollution Degree

2
