Switchgear Electromagnet Coil

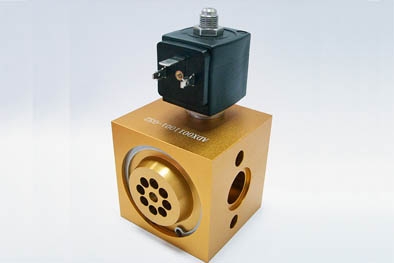

MQZ7 D.C. switchgear electromagnet coil is used for the control circuit of D.C. 220V, which is dedicated for the solenoid valve of pneumatic operating mechanism of vacuum circuit breaker. The coil is thermo-plastic coated with superior temperature tolerance up to class H.

item no.:
MQZ7

inquiry now

details

Characteristics MQZ7 Switchgear Electromagnet Coil

* Easy to fix and connect to the load

* The risen temperature is stable so as to prolong lifetime and guarantee excellent performance

* Anti-friction ensures high efficiency and long lifetime

* MQZ7 is thermosetting coated with excellent temperature tolerance and protection level IP65

Coil voltage		220、110、48、12VDC
Coil aperture × coil height		Φ14.5mm×37mm
Operating frequency (Power-on duration<1s)		Continuous working（ED100%）
Temperature rise limit		≤60 K
Withstand voltage of insulation		AC2000V，1min
Protection level		IP65
Environment	Attitude	≤1000m
	Temperature	-40℃ ～ +120℃
	Humidity	≤95%
	Pollution degree	2
