Electromagnet Coil

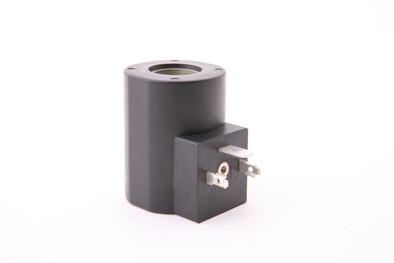

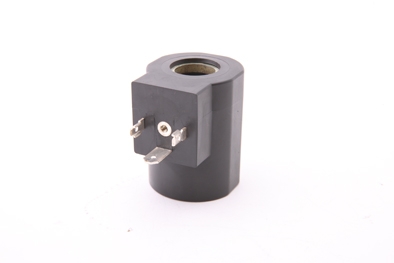

MQZ4 D.C. electromagnet coil is used for the control circuit of D.C. 220V, which is dedicated for the hydraumatic solenoid valve of hydraumatic disc spring stored energy operating devices. The coil is thermo-plastic coated with superior temperature tolerance.


  • item no.:

    MQZ4
inquiry now
details

Characteristics MQZ4 Electromagnet Coil



Easy to fix and connect to the load

The risen temperature is stable so as to prolong lifetime and guarantee excellent performance

Anti-friction ensures high efficiency and long lifetime

MQZ-4 is thermoplastic coated with excellent temperature tolerance



Coil Voltage

DC220V,DC110V

Coil diameter * Coil height

Φ16mm×40mm

Operation Frequency

(Power Duration <1s)

120 times/H

Limit of Temperature Rise

65 K

Insulation Class

AC2000V1min

Protection Level

IP65

Environment

Altitude

1000m

Temperature

-40 +120

Humidity

95%

Pollution degree

2
