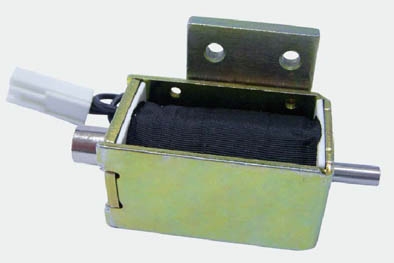

switchgear electromagnet

MQZ6 switchgear electromagnet is mainly used in the control circuit of DC 220V, as the electromagnet coil for switching of motorized operating device of vacuum circuit breaker and switchgear incoming/outgoing cables.

item no.:
MQZ6

inquiry now

details

Characteristics MQZ6 Switchgear Electromagnet

* Easy to fix and connect to the load

* The risen temperature is stable so as to prolong lifetime and guarantee excellent performance

* Anti-friction ensures high efficiency and long lifetime

Coil voltage		220、110、48、24VDC
Rated attraction force		20N
Rated Stroke		11.5mm
Operating frequency (Power-on duration<1s)		120(times/hour)
Temperature rise limit		65(K)
Usage lifetime		>10000 times
dielectric behavior		AC2000V,1min
Environment	Attitude	≤1000m
	Temperature	-25℃ ～ +40℃
	Humidity	≤95%
	Pollution degree	2
